Description

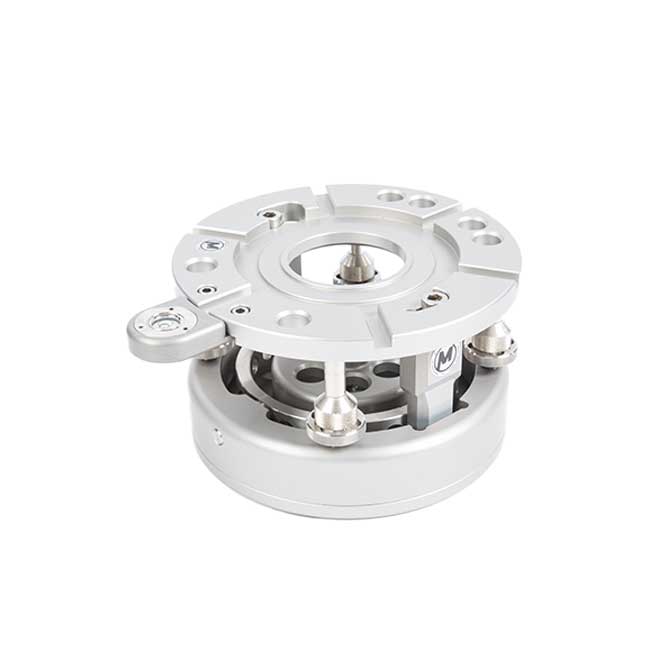

4 Way Leveller Mitchell

Technical specifications

• 4 sets available
• 7 ° Inclination angle (above average)
• 5900gr (lightweight construction aluminum)
• Fine thread (leveling by hand at high load possible)
• Overhead work possible (new suspension)

With this flexible system, there are no surprises on the set!
Optional connection plates can be exchanged via bayonet system!
The base is a gimbal which can be equipped with various top and bottom plates (Euro and Mitchellmount)!
And this in a few seconds, via practical bayonet closures.
The new 4-way levellers are play-free and are very robust – ideal for the tough requirements on the set.
A single SET like Euro on Euromount can be supplemented with optional adapter plates at any time.

With the new 4-way Mitchell leveling unit, fine threads allow very precise positioning of the tilt angle. The 5900 gram lightweight 4-way levellers are mainly made of aluminum, the axles are free of weights. The 4-way levellers can be supplemented with all adapter plates of the set.
