Unique arm length in its class.
Double swivel remote head mount, jib head, nose mount or manned platform - you have the choice.
Modular design for numberous setup versions.
Depending on the sertup version, the payload can be up to 250kg.

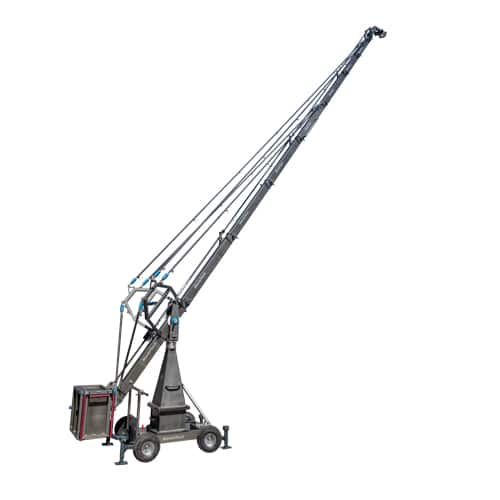

The KIRIN CRANE is a new kind of camera crane system, designed to offer unparalleled versatility in setup configurations, making it an ideal choice for any scenario requiring a robust camera crane.
Inspired by the feedback and wishes of users worldwide, the KIRIN CRANE features multiple setup versions to cater to diverse filming needs:
This innovative crane system boasts several advantages over other camera cranes:
Throughout its development, we have prioritized safety and user-friendliness to ensure a superior filming experience. We manufacture our MovieTech grip equipment in-house in our factory in Munich – MADE IN GERMANY !
Remote head mount, manned platform, nosemount or jib head – you have the choice.
Scratch-resistent surface treatment to keep your KIRIN in good shape.
Backlash-free connections between the segments ensure a stable crane arm.
Segments in different length versions make the KIRIN CRANE ultra versatile.
360° rotation of the head to position the camera exactly where and how you need it to be.
An ultra strong crane base dolly or a lighter jib dolly with integrated 4-wheel-steering.
The remote head mount features an integrated 4-Way leveler to fine-adjust your camera-setup.
You can choose from different crane transport systems that exactly meet your requirements.
The modular design concept allows for multiple setup-options. Different head and counterweight carrier options, counter-weight baskets of holders and different crane base dolly make the Kirin not only one, but multiople cranes.
The Kirin Crane is a versatile camera crane. You can mount different heads:
Gap-free due to form closure.
The new segment connections of the crane are designed in such a way that they form an optimum connection in all temperatures and weather conditions. A perfect contact of the plates by form closure.
Flexible in construction.
The telescopic braces allow a perfect compensation to realize all body lengths of the Kirin, from the jib to the 14m Remote Head version. There a no further adapters needed!
Sophisticated operating concept.
New MovieTech Kirin crane offers numerous practical details for convenient and safe operation. Various versions of the handles and swivel supports make work on the set much easier thanks to their flexible positioning.
Super strong bracing system.
The newly developed guying system increases the stability of the crane many times over. A reinforced tower, ball-lock-pin connections and additional reinforcement rods guarantee maximum in safety. New levelling units with extra long travel to ensure user-friendly setup.
– Telescopic rod for length compensation (no extra spacers needed)
– Reinforced tower and rods
– Ball-lock-pin connection
Kirin Crane exists in three Versions: Remote Version, Platform Version and Jib Version.
Segment Connection
Gap-free due to form closure.
The new segment connections of the Kirin crane are designed in such a way that they form an optimum connection in all temperatures and weather conditions. A perfect contact of the plates by form closure.
Telescopic system
Flexible in construction.
The telescopic braces allow a perfect compensation to realize all body lengths of the Kirin crane, from the jib to the 14m Remote Head version. There a no further adapters needed!
Swivel Grips
Sophisticated operating concept.
The new MovieTech Kirin crane offers numerous practical details for convenient and safe operation. Various versions of the handles and swivel supports make work on the set much easier thanks to their flexible positioning.
Kirin Crane DOLLY
Remote head mount
With double swivel head and integrated 4-way-leveller-system.
(4700-9100)
Jib head
Standard mount reception allows for bowl-adapters (150mm/100/mm/75mm), Euro clamp/mount, or Mitchell mount. Integrated swivel system.
(4700-9700)
Platform with turnstile
The platform for manned operation has a super smooth turnstile with integrated brake.
(4700-9500)
Nose mount
With mitchell plates on all sides, even on the front. Ideal for horizontal camera mount e.g. when passing through a car-window.
(4700-9800)

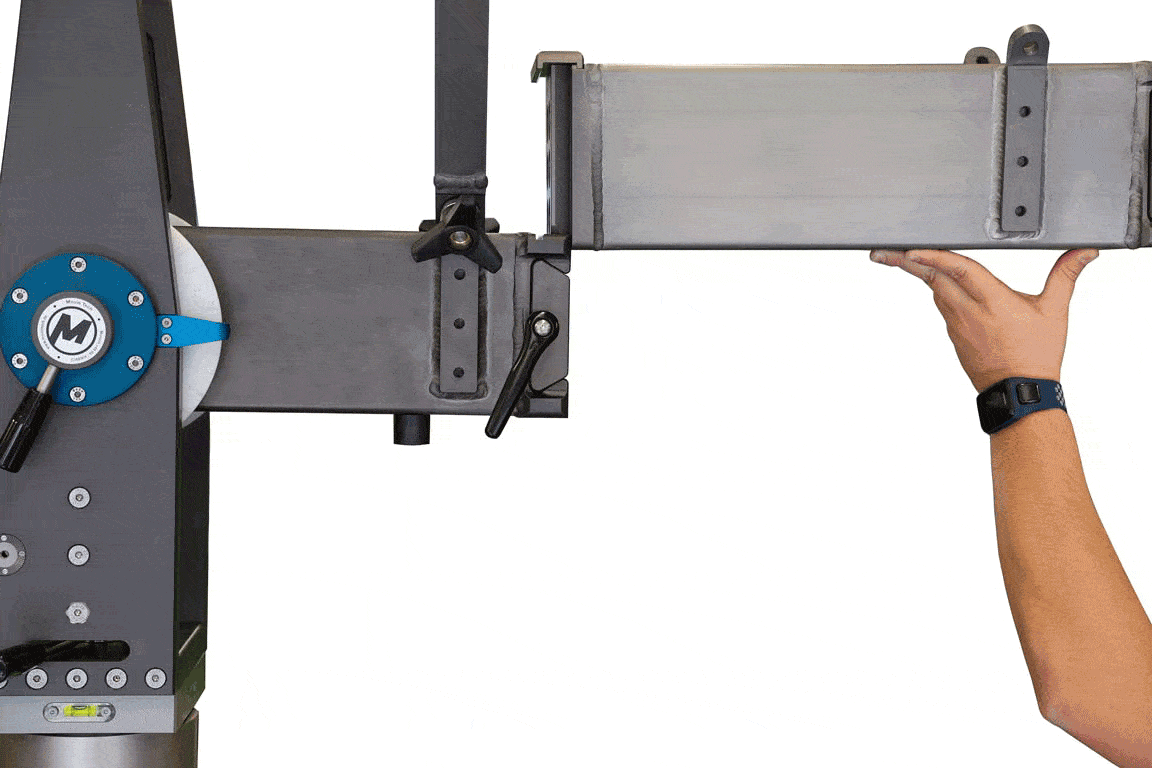

The tool-free system of the individual crane segments ensures a safe and backlash-free connection. This quick locking dove tail system shortens assembly times considerably. No loss of small parts possible.

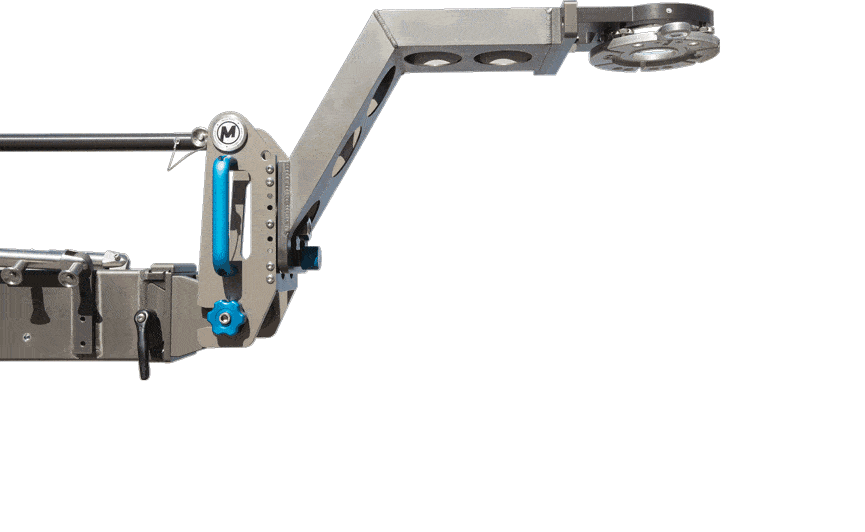

Integrated double swivel
The Kirin head is the first crane head that offers a double swivel system, allowing for overslung and underslung operation.
In addition, the integrated 4-way levelling system enables optimum setup of a remote head.
The modular extension segments are interchangeable and thus offer numerous set-up possibilites for your Kirin Crane. They are available in the sizes:
Choose from different crane base dolly versions to suit your specific needs:
KIRIN Crane Base Dolly (4705-01Set): Perfect for longer crane setups or manned operation, this heavy-duty dolly provides a stable foundation. The robust hard rubber wheels ensure smooth movement even when the crane is loaded. Track wheels can be attached in either 62cm or 100cm gauge, accommodating leveling legs and wheels mounted to the base.
CD8 Crane Base Dolly (4540-01Set): Ideal for shorter crane or jib versions, this lightweight, slim dolly features leveling legs that attach directly to the axis. It also includes permanent 4-wheel steering for superior maneuverability.
To store and transport your KIRIN Crane efficiently, choose from two transport system options:
Onboard Transport System (4707-01): The entire crane can be safely driven directly from the truck to the set. Super compact an minimal space requirement.
External Transport System (4706-01): Designed for secure transport and storage, providing flexibility based on your specific needs. Keep the perfect overview and reduce setup-times.
THE KIRIN CRANE is a very customizable camera crane system. The standard set-up variations plus accessories transform the KIRIN CRANE into the ideal tool for any shot requirement.
